Description

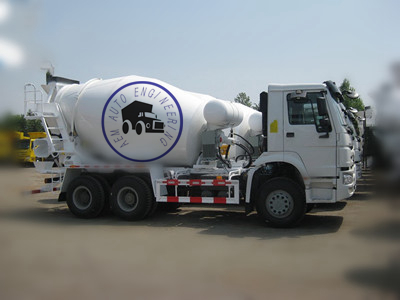

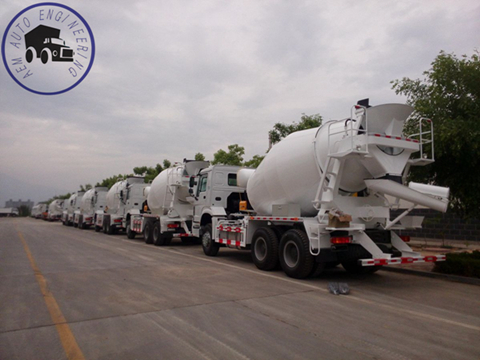

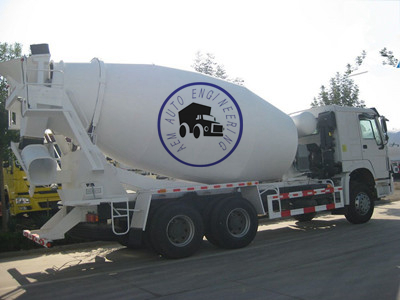

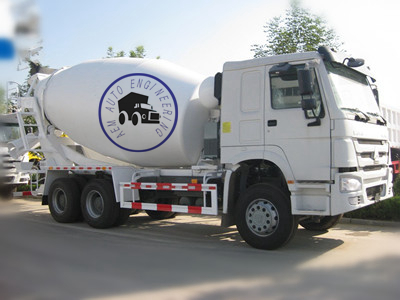

8cbm concrete mixer truck
Concrete mixer truck Features:
1. Adopt special concrete mixer truck chassis.
2. Adopt imported international brands reducer, pumps and motors, as you increase the safest
job security.
3. Three-dimensional surface becomes double helix angle helical blade technology, the blades
automatically using underwater plasma welding and cutting, molding, rotary surface flow along
the helix angle, pitch precision, ensuring fast access to materials, homogeneity really segregation,
the residual rate.
4. Mixing bucket large volume design, it has a larger loading and mixing space to meet the
transport requirements of poor conditions of high slump concrete materials.
5. Mixing drum and high-strength low-alloy steel materials, wear practical, mainly using
automatic submerged arc weld. While retaining the blade tip wear of the welding, greatly
improving the life of the tank.
6. Mixer sub-frame using modern simulation finite element analysis method, combined with
the dynamic load state of stress experiments to optimize design, high flexural strength and
torque stiffness, and durability.
7. Prop-wheel steering span, good lateral stability tank run; supporting wheel surface using
high-frequency hardening technology, quenching level uniformity, high hardness, good toughness,
long service life.
8. After stirring the discharge side by mechanical splitter chassis cab devices and manipulation
of soft three-point control for ball bearing joint bearing support, convenient and flexible
manipulation. Pump turn of the control yoke with spring ball positioning, precise positioning
reliable guarantee cylinder rotates at a constant speed operation and unloading process.
9. The largest hopper design, easier to fill concrete; unique hopper seal design, completely solve
the problem of climbing overflow.
10. Working outside ladder for climbing face unique tilting rectangular tube structure, nice solid
and reliable.
1. Adopt special concrete mixer truck chassis.
2. Adopt imported international brands reducer, pumps and motors, as you increase the safest
job security.
3. Three-dimensional surface becomes double helix angle helical blade technology, the blades
automatically using underwater plasma welding and cutting, molding, rotary surface flow along
the helix angle, pitch precision, ensuring fast access to materials, homogeneity really segregation,
the residual rate.
4. Mixing bucket large volume design, it has a larger loading and mixing space to meet the
transport requirements of poor conditions of high slump concrete materials.
5. Mixing drum and high-strength low-alloy steel materials, wear practical, mainly using
automatic submerged arc weld. While retaining the blade tip wear of the welding, greatly
improving the life of the tank.
6. Mixer sub-frame using modern simulation finite element analysis method, combined with
the dynamic load state of stress experiments to optimize design, high flexural strength and
torque stiffness, and durability.
7. Prop-wheel steering span, good lateral stability tank run; supporting wheel surface using
high-frequency hardening technology, quenching level uniformity, high hardness, good toughness,
long service life.
8. After stirring the discharge side by mechanical splitter chassis cab devices and manipulation
of soft three-point control for ball bearing joint bearing support, convenient and flexible
manipulation. Pump turn of the control yoke with spring ball positioning, precise positioning
reliable guarantee cylinder rotates at a constant speed operation and unloading process.
9. The largest hopper design, easier to fill concrete; unique hopper seal design, completely solve
the problem of climbing overflow.
10. Working outside ladder for climbing face unique tilting rectangular tube structure, nice solid
and reliable.
