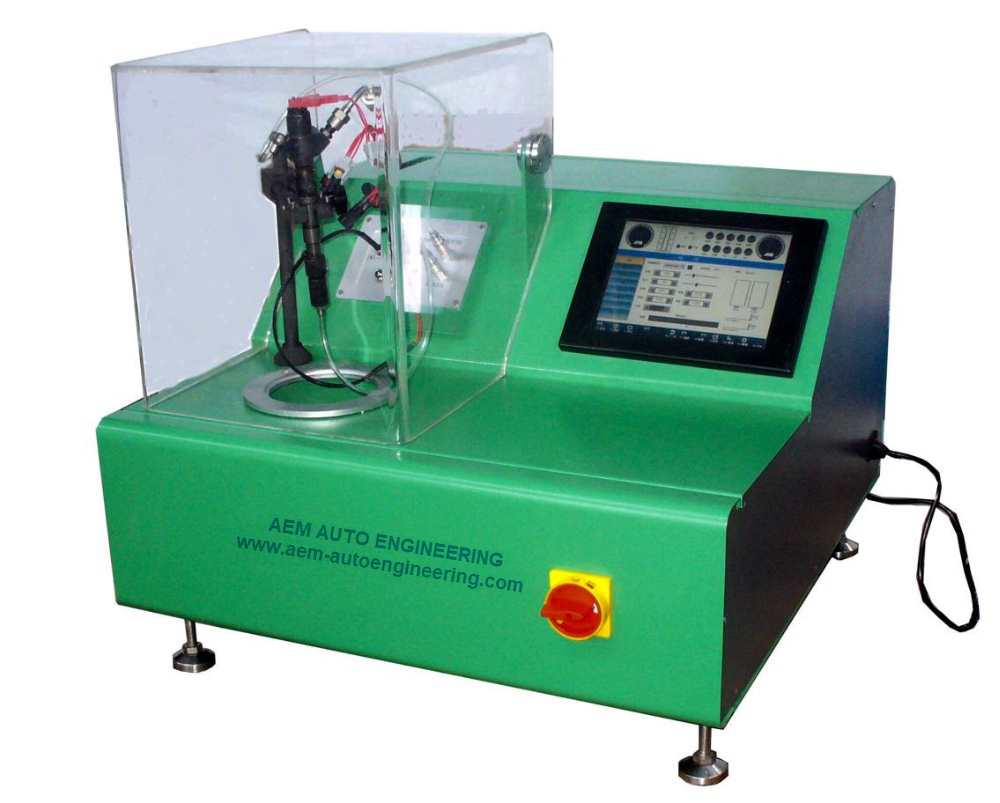

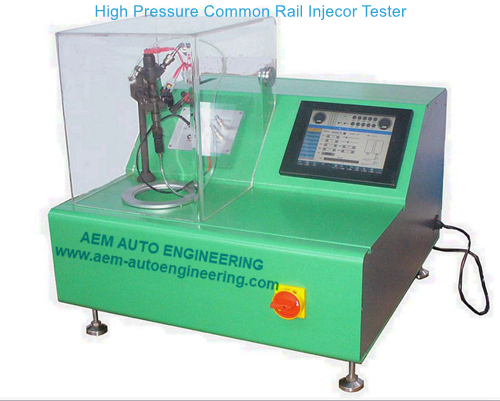

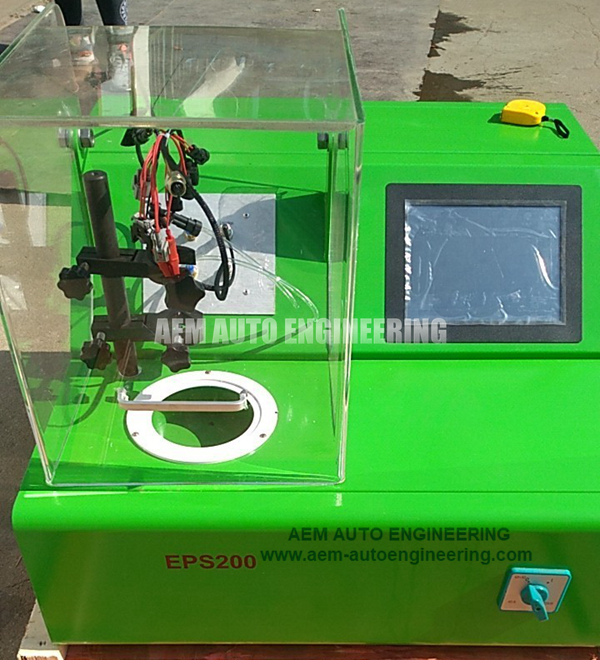

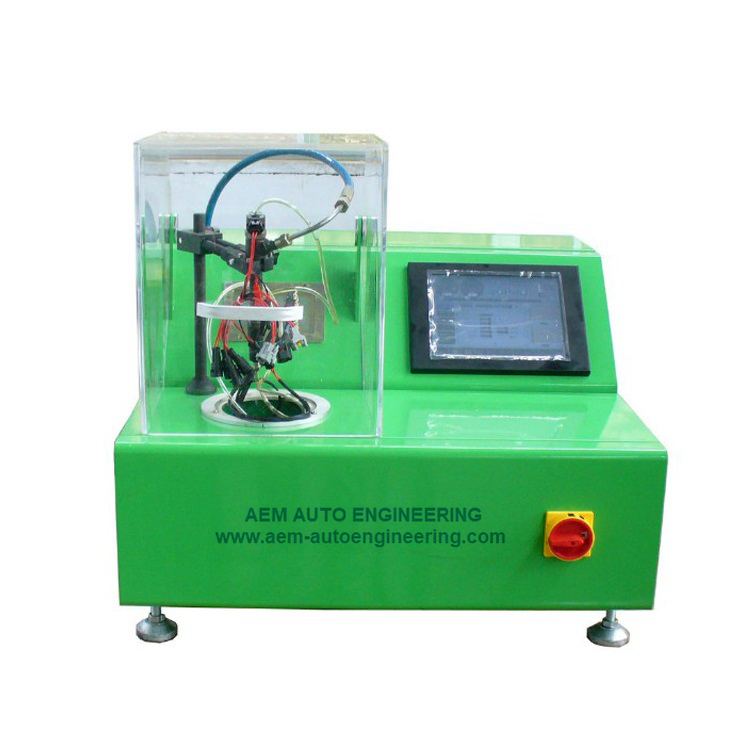

EPS200 test bench is our latest indepentent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH original common rail pump to provide 0~2000 bar for rail pressure. The rail pressure can be adjusted automatically, and it also provide pressure overload protect. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement ,convenient operate and competitive price.

It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.

EPS200 Common Rail Injector Test Bench Characteristic

1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4〃 tactile  LCD screen;
3. More than 700 kinds of injecotors data can be searched and used.
4. It is installed BOSCH common rail pump to provide 0~2000 bar
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9.  Protection function of short-circuit.
10. Precise measurement, easy operation, low noise.
11.Frequency converter inside to keep the RPM.

EPS200 Common Rail Injector Test Bench Function

1.Test injector brands：BOSCH, SIEMENS, DELPHI, DENSO. Piezo injector testing(option function)
2. Test 1 piece of injector.
3. Test the Leakage performance of common rail injector.
4. injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)
5. Electronic fuel delivery measuring,  automatic testing and detection.
6. Data can be searched and saved.

Technical Parameter
1. Pulse width: 0.1~20ms
2. Continuous injection times: 0~1000
3. Fuel temperature: 40±2°C
4. Rail high pressure: 0~1600 bar
5. Test oil filtered precision: 5μ
6. Input power: 380V/50hz/3phase or 220V/60hz/3phase
7. Rotation speed: 0~3000RPM
8. Oil tank capacity: 16L
9. Overall dimension: 865mmx775mmx1430 mm
10. Weight: 150KG
