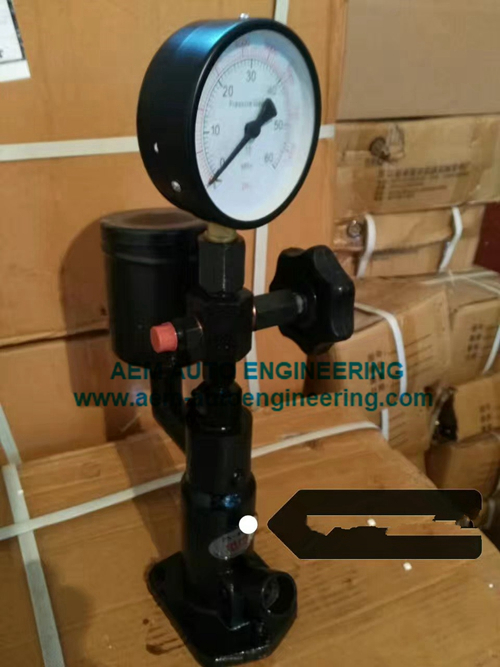

PS-400A Fuel Injector & Nozzle Tester
PS-400A type fuel injector tester is a special instrument for the operation test of diesel engine.
Description
PS-400A Fuel Injector & Nozzle Tester
PS-400A type fuel injector tester is a special instrument for the operation test of diesel engine.
It is suitable for following performance tests.
1. Initiatve injecting press of injector
2. Sound of needle valve vibration
3. Spraying shape
4. Sealing function of needle valve and nozzle body mating pair
5. Sealing function in response to press
1. Max. pressure: 300kg/cm3
2. Volume of fuel box: 400cc
3. Dimensions: 190mmx110mmx390 mm
4. Weight: 5.5kg
Maintenance
1. Before test,the tester should be reversed to add lubricating oil and all the connectors should be cleaned.
2. After test,the connectors of tester and high pressure oil pipe should be coated with grease,the fuel box should be closed and the whole tester should be covered with cloth to keep cleaning.
